Honda HR-V specifications,
dimensions and grades

Discover the Honda HR-V specifications, including boot size, safety features, weight capacity, engine, emissions and entertainment system. Find out more about design materials and multimedia capabilities – including the navigation system.

View Full Specification

Honda HR-V Colours

  • Platinum White Pearl £650.00
  • Premium Sunlight White Pearl £975.00
  • Meteoroid Grey Metallic £650.00
  • Crystal Black Pearl £650.00
  • Premium Crystal Red Metallic £975.00
  • Sand Khaki Pearl As standard
  • Premium Sunlight White Pearl Two-tone £975.00
  • Meteoroid Grey Metallic Two-tone £650.00
  • Crystal Black Pearl Two-tone £650.00
  • Sand Khaki Pearl Two-tone As standard
  • Midnight Blue Beam Metallic Two-tone £650.00

Key Features

Plug icon
Self-charging hybrid
No need to plug in
Alloy wheel
18'' Alloy wheels
As standard
boot capacity
1,289 litres (seats folded) boot capacity
to the roof
and a class-leading cabin space
Real-world efficiency
Real-world efficiency
of up to 740 km / 459 miles on a full tank
Honda CONNECT 9” Touchscreen
Honda CONNECT 9” Touchscreen
Our infotainment system – with Android Auto and Apple CarPlay
Honda SENSING
Honda SENSING
Reads the road signs and driving conditions before you do

Honda HR-V Dimensions

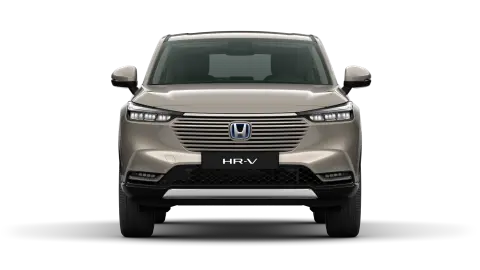

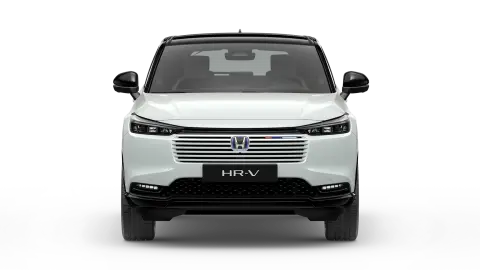

Front facing Honda HR-V

Width: 1,866 mm (mirrors folded)

2,028 mm (incl. mirrors)

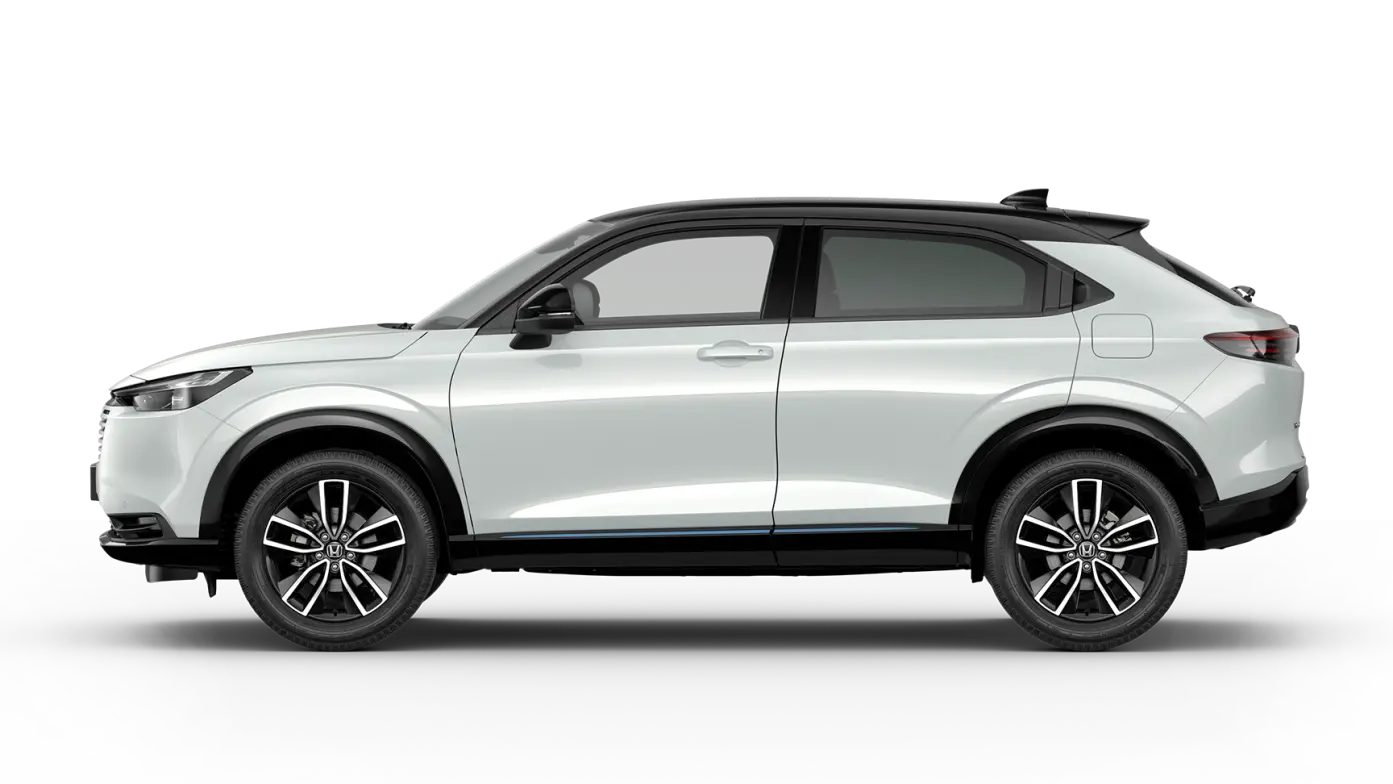

Side facing Honda HR-V

Length: 4,340 mm

Height: 1,582 mm

Unladen

Full HR-V Hybrid Specifications

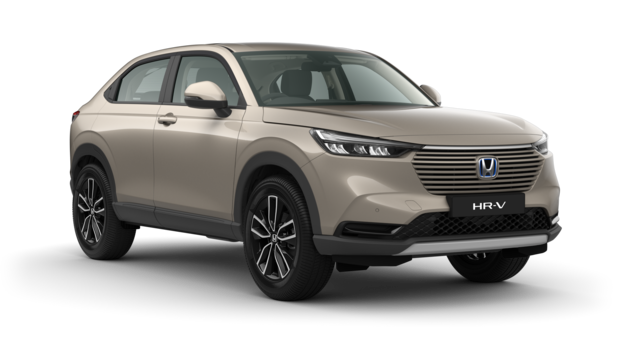

Advance

i-MMD eCVT

£33,160.00

Configure your HR-V Advance

Key Features

  • Honda CONNECT with 9" touch screen
  • Honda SENSING
  • Heated front seats
  • Heated door mirrors
  • Keyless entry and start
  • Front and rear parking sensors
  • Air diffusion system
  • Heated leather steering wheel
  • Rear-view camera

Engine

  • Engine Type

    i-MMD

  • Engine Name

    Intelligent Multi Mode Drive

  • Displacement (cc)

    1498 cc

  • Bore X Stroke (mm)

    73x89.5 mm

  • Compression Ratio

    13.5±0.2

  • Valve Train

    4 VALVES

  • Emission Standard

    EURO6d-final

  • Fuel Required

    UNLEADED(95)

Performance

  • Engine Maximum Power (kW at rpm)

    79@6000-6400 kW at rpm

  • Engine Maximum Power (ps at rpm)

    107@6000-6400 ps at rpm

  • Engine Maximum Torque (NM at rpm)

    131@4500-5000 Nm at rpm

  • Electric Motor Max Power(kW [PS])

    96[131] kW (ps)

  • Electric Motor Max Torque (Nm)

    253 Nm

  • 0 → 62 mph (seconds)

    10.7 seconds

  • Max Speed (mph)

    106 mph

  • Sound Level Drive-by (dB)

    66 dB

Fuel economy and emissions (WLTP)

  • Low - CO2 g/km

    104 g/km

  • Medium - CO2 g/km

    94 g/km

  • High - CO2 g/km

    103 g/km

  • Extra High - CO2 g/km

    162 g/km

  • Combined - CO2 g/km

    122 g/km

  • Low - FC l/100km

    4.6 l/100 km

  • Medium - FC l/100km

    4.1 l/100 km

  • High - FC l/100km

    4.6 l/100 km

  • Extra High - FC l/100km

    7.1 l/100 km

  • Combined - FC l/100km

    5.4 l/100 km

  • Low - FC (mpg)

    61.4 mpg

  • Medium - FC (mpg)

    68.9 mpg

  • High - FC (mpg)

    61.4 mpg

  • Extra High - FC (mpg)

    39.8 mpg

  • Combined - FC (mpg)

    52.3 mpg

  • Carbon Monoxide CO

    58.2 mg/km

  • Total Hydro Carbon HC

    5.7 mg/km

  • Non-Methane Hydro Carbon NMHC

    4.6 mg/km

  • Nitrogen Oxides NOx

    4.4 mg/km

Fuel economy and emissions (NEDC)

  • Urban Cycle CO2 g/km

    72 g/km

  • Extra Urban CO2 g/km

    110 g/km

  • Combined CO2 g/km

    96 g/km

  • Urban Cycle (l/100km)

    3.1 l/100 km

  • Extra Urban (l/100km)

    4.8 l/100 km

  • Combined (l/100km)

    4.2 l/100 km

  • Urban Cycle (mpg)

    91.1 mpg

  • Extra Urban (mpg)

    58.9 mpg

  • Combined (mpg)

    67.3 mpg

Dimensions

  • Length (mm)

    4340 mm

  • Width (mm)

    1790 mm

  • Overall Width (mm) with Door Mirror Folded

    1866 mm

  • Width including Door Mirror

    2028 mm

  • Height - Unladen (mm)

    1582 mm

  • Wheelbase (mm)

    2610 mm

  • Track Front (mm)

    1535 mm

  • Track Rear (mm)

    1540 mm

  • Ground Clearance - Non Load (mm)

    188(@MRO) mm

  • Ground Clearance - with Full Load (mm)

    150.58 mm

  • Turning Circle - at Body (m)

    11.3 (outside tyre) m

  • Turning Radius - at Wheel Centre (m)

    5.5 m

  • Steering Wheel Lock to Lock (wheel turns)

    2.4 wheel turns

Capacity

  • Fuel Tank (litres)

    40 litres, VDA method

  • Seating Capacity (persons)

    5 persons

  • Boot Capacity - Rear Seat Up (litres, VDA method)

    319 litres, VDA method

  • Boot Capacity - Rear Seat up (litres, VDA method) incl sub Boot/luggage floor box

    335 litres, VDA method

  • Boot Capacity - Rear Seat Down Load to Roof (litres, VDA method)

    1289 litres, VDA method

  • Boot Capacity - Rear Seat Down Load to Roof (litres, VDA method) incl sub Boot/luggage floor box

    1305 litres, VDA method

  • Boot Capacity - Rear Seat Down Load to Window (litres, VDA method)

    971 litres, VDA method

  • Boot Capacity - Rear Seat Down Load to Window (litres, VDA method) incl sub Boot/luggage floor box

    987 litres, VDA method

Weight

  • Kerb Weight (kg)

    1,380 - 1,401 kg

  • Max. Permissible Weight

    1870 kg

  • Payload (kg)

    469-490 kg

  • Max. Permissible Axle Weight - Front/Rear (kg)

    1,030 / 890 kg

  • Max. Roof Load (kg)

    45 kg

Transmission

  • Transmission Type

    eCVT

Safety

  • ABS (Anti-Lock Braking System)
  • Airbags - Front Driver & Passenger
  • Airbags - Passenger SRS Airbag with Cut Off Switch
  • Airbags - Side (Front)
  • Airbags - Side Curtain (Front and Rear)
  • Brake Assist (BA)
  • Collision Mitigation Braking System
  • Collision Mitigation Throttle Control (RR&FR)
  • Deflation Warning System (DWS)
  • Driver SRS Airbag (Single Stage inflation)
  • eCall (Europe)
  • Electronic Brakeforce Distribution (EBD)
  • Emergency Stop Signal
  • Forward Collision Warning
  • Front & Rear Seat Belts with Emergency Locking Retractor (ELR)
  • Adjustable Speed Limiter
  • Intelligent Speed Limiter
  • ISO Fix Points / I-SIZE
  • Lane Departure Warning (LDW)
  • Lane Keeping Assist System
  • Low Speed Brake Function
  • Low Speed Following
  • Road Departure Mitigation
  • Traffic Sign Recognition System
  • Vehicle Stability Assist (VSA)
  • Whiplash Lessening Front Headrests

Security

  • Immobiliser System
  • Remote Central Locking with 2 Keys
  • Security Alarm System
  • Smart Entry & Start
  • Super Locking
  • Tonneau Cover (incl. in tailgate)

Interior Trim

  • Interior Panels - Silver
  • Interior Door Handles - Silver
  • Pedals - Normal
  • Steering Wheel - Leather
  • Black Synthetic Leather & Fabric
  • Brown Leather x Alston Fabric (Optional)

Function and technology

  • Agile Handle Assist (AHA)
  • ECON Mode
  • Drive Mode - ECON/SPORT/NORMAL
  • Electric Parking Brake with Automatic Brake Hold
  • Brake Hold
  • Electric Power Steering (EPS)
  • Electric Power Steering - Variable Gear Ratio
  • Hill Start Assist (HSA)
  • Hill Descent Control
  • Idle Stop / EV mode
  • Multi Info Display
  • Paddle Shift
  • Regenerative Braking/Deceleration Control (Paddle)

Comfort and convenience

  • Accessory Socket Location - Front
  • Air Conditioning Dual Zone Auto
  • Air Conditioning - Rear Vent
  • Auto Dimming Rear View Mirror
  • Auto Wipers
  • Cargo Net Hook
  • Cruise Control - Adaptive
  • Door Mirrors - Electrically Adjustable
  • Door Mirrors - Heated
  • Door Mirrors - Electrically Folding
  • Door Mirrors - Exterior Mirror Tilt for Reverse
  • Driver and Front Passenger Seat Armrest
  • Electric Windows Front & Rear
  • Front Seat - Manual Height Adjustment
  • Front Seat Passenger and Driver - Pockets
  • Heated Front Windshield
  • Heated Seats - Front
  • Heated Steering Wheel
  • Key Fob with Mirror and Window Operation
  • Luggage Floor Box
  • Magic Seats
  • Parking Sensors (Front 4: Rear 4)
  • Rear Bench 60/40 Split
  • Rear Seat Centre Armrest
  • Rear View Camera
  • Sunvisor Vanity Mirrors
  • Tilt and Telescopic Steering Wheel

Interior Lights

  • Ambient Light (Roof)
  • Courtesy Light
  • Map Light (Front)
  • Meter Illumination
  • Rear Reading Light
  • Sunvisor Vanity Mirror Illumination
  • Boot Light

Audio and Communications

  • BluetoothTM Hands Free Telephone (HFT)
  • DAB
  • My Honda+ Compatible
  • Honda CONNECT with Navigation (9" touchscreen, AM/FM/DAB, Apple Carplay and Android Auto)
  • 4 Speakers & 2 Tweeters
  • Speakers - Front Tweeter
  • Steering Wheel Remote Audio Controls
  • USB Front x2
  • USB Rear x2
  • Wireless Apple Carplay

Exterior

  • Shark Fin antenna
  • e:HEV Emblem
  • Exterior Door Handle Finish
  • Body Colour Grille
  • Spoiler
  • High Gloss Window Garnish

Exterior Lights

  • Auto Headlights
  • LED Daytime Running Light
  • LED Front Fog Lights
  • Headlight Auto On/Off Timer (Coming Home/Leaving Home Function)
  • LED Headlight
  • High Beam Support System (HSS)
  • Red & Clear Lens Rear Light
  • Front Turn LED with sequential

Wheels & Tyres

  • Tyre Repair kit
  • 18'' Black Cut Alloy Wheel
  • Tyres size Front/Rear - 225/50 R18

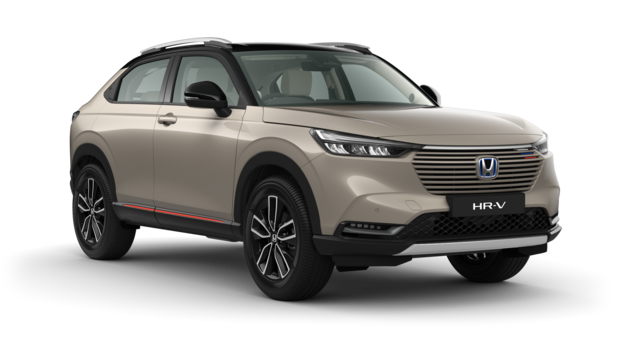

Advance Style

i-MMD eCVT

£36,305.00

Configure your HR-V Advance Style

Key Features

  • Honda CONNECT with 9" touch screen
  • Honda SENSING
  • Heated front seats
  • Heated door mirrors
  • Keyless entry and start
  • Front and rear parking sensors
  • Air diffusion system
  • Heated leather steering wheel
  • Roof rails
  • LED cornering lights
  • Rear-view camera
  • Two-tone roof
  • Wireless charger

Engine

  • Engine Type

    i-MMD

  • Engine Name

    Intelligent Multi Mode Drive

  • Displacement (cc)

    1498 cc

  • Bore X Stroke (mm)

    73x89.5 mm

  • Compression Ratio

    13.5±0.2

  • Valve Train

    4 VALVES

  • Emission Standard

    EURO6d-final

  • Fuel Required

    UNLEADED(95)

Performance

  • Engine Maximum Power (kW at rpm)

    79@6000-6400 kW at rpm

  • Engine Maximum Power (ps at rpm)

    107@6000-6400 ps at rpm

  • Engine Maximum Torque (NM at rpm)

    131@4500-5000 Nm at rpm

  • Electric Motor Max Power(kW [PS])

    96[131] kW (ps)

  • Electric Motor Max Torque (Nm)

    253 Nm

  • 0 → 62 mph (seconds)

    10.7 seconds

  • Max Speed (mph)

    106 mph

  • Sound Level Drive-by (dB)

    66 dB

Fuel economy and emissions (WLTP)

  • Low - CO2 g/km

    104 g/km

  • Medium - CO2 g/km

    94 g/km

  • High - CO2 g/km

    103 g/km

  • Extra High - CO2 g/km

    162 g/km

  • Combined - CO2 g/km

    122 g/km

  • Low - FC l/100km

    4.6 l/100 km

  • Medium - FC l/100km

    4.1 l/100 km

  • High - FC l/100km

    4.6 l/100 km

  • Extra High - FC l/100km

    7.1 l/100 km

  • Combined - FC l/100km

    5.4 l/100 km

  • Low - FC (mpg)

    61.4 mpg

  • Medium - FC (mpg)

    68.9 mpg

  • High - FC (mpg)

    61.4 mpg

  • Extra High - FC (mpg)

    39.8 mpg

  • Combined - FC (mpg)

    52.3 mpg

  • Carbon Monoxide CO

    58.2 mg/km

  • Total Hydro Carbon HC

    5.7 mg/km

  • Non-Methane Hydro Carbon NMHC

    4.6 mg/km

  • Nitrogen Oxides NOx

    4.4 mg/km

Fuel economy and emissions (NEDC)

  • Urban Cycle CO2 g/km

    72 g/km

  • Extra Urban CO2 g/km

    110 g/km

  • Combined CO2 g/km

    96 g/km

  • Urban Cycle (l/100km)

    3.1 l/100 km

  • Extra Urban (l/100km)

    4.8 l/100 km

  • Combined (l/100km)

    4.2 l/100 km

  • Urban Cycle (mpg)

    91.1 mpg

  • Extra Urban (mpg)

    58.9 mpg

  • Combined (mpg)

    67.3 mpg

Dimensions

  • Length (mm)

    4340 mm

  • Width (mm)

    1790 mm

  • Overall Width (mm) with Door Mirror Folded

    1866 mm

  • Width including Door Mirror

    2028 mm

  • Height - Unladen (mm)

    1582 mm

  • Wheelbase (mm)

    2610 mm

  • Track Front (mm)

    1535 mm

  • Track Rear (mm)

    1540 mm

  • Ground Clearance - Non Load (mm)

    188(@MRO) mm

  • Ground Clearance - with Full Load (mm)

    150.63 mm

  • Turning Circle - at Body (m)

    11.3 (outside tyre) m

  • Turning Radius - at Wheel Centre (m)

    5.5 m

  • Steering Wheel Lock to Lock (wheel turns)

    2.4 wheel turns

Capacity

  • Fuel Tank (litres)

    40 litres, VDA method

  • Seating Capacity (persons)

    5 persons

  • Boot Capacity - Rear Seat Up (litres, VDA method)

    319 litres, VDA method

  • Boot Capacity - Rear Seat up (litres, VDA method) incl sub Boot/luggage floor box

    335 litres, VDA method

  • Boot Capacity - Rear Seat Down Load to Roof (litres, VDA method)

    1289 litres, VDA method

  • Boot Capacity - Rear Seat Down Load to Roof (litres, VDA method) incl sub Boot/luggage floor box

    1305 litres, VDA method

  • Boot Capacity - Rear Seat Down Load to Window (litres, VDA method)

    971 litres, VDA method

  • Boot Capacity - Rear Seat Down Load to Window (litres, VDA method) incl sub Boot/luggage floor box

    987 litres, VDA method

Weight

  • Kerb Weight (kg)

    1,380 - 1,401 kg

  • Max. Permissible Weight

    1870 kg

  • Payload (kg)

    469-490 kg

  • Max. Permissible Axle Weight - Front/Rear (kg)

    1,030 / 890 kg

  • Max. Roof Load (kg)

    50 kg

Transmission

  • Transmission Type

    eCVT

Safety

  • ABS (Anti-Lock Braking System)
  • Airbags - Front Driver & Passenger
  • Airbags - Passenger SRS Airbag with Cut Off Switch
  • Airbags - Side (Front)
  • Airbags - Side Curtain (Front and Rear)
  • Brake Assist (BA)
  • Collision Mitigation Braking System
  • Collision Mitigation Throttle Control (RR&FR)
  • Deflation Warning System (DWS)
  • Driver SRS Airbag (Single Stage inflation)
  • eCall (Europe)
  • Electronic Brakeforce Distribution (EBD)
  • Emergency Stop Signal
  • Forward Collision Warning
  • Front & Rear Seat Belts with Emergency Locking Retractor (ELR)
  • Adjustable Speed Limiter
  • Intelligent Speed Limiter
  • ISO Fix Points / I-SIZE
  • Lane Departure Warning (LDW)
  • Lane Keeping Assist System
  • Low Speed Brake Function
  • Low Speed Following
  • Road Departure Mitigation
  • Traffic Sign Recognition System
  • Vehicle Stability Assist (VSA)
  • Whiplash Lessening Front Headrests

Security

  • Immobiliser System
  • Remote Central Locking with 2 Keys
  • Security Alarm System
  • Smart Entry & Start
  • Super Locking
  • Tonneau Cover (incl. in tailgate)

Interior Trim

  • Interior Panels - Silver
  • Interior Door Handles - Silver
  • Pedals - Normal
  • Steering Wheel - Leather
  • Light Grey Synthetic Leather & Fabric
  • Exclusive Styling - Orange Front Console garnish, orange stiches on steering wheel and seats

Function and technology

  • Agile Handle Assist (AHA)
  • ECON Mode
  • Drive Mode - ECON/SPORT/NORMAL
  • Electric Parking Brake with Automatic Brake Hold
  • Brake Hold
  • Electric Power Steering (EPS)
  • Electric Power Steering - Variable Gear Ratio
  • Hill Start Assist (HSA)
  • Hill Descent Control
  • Idle Stop / EV mode
  • Multi Info Display
  • Paddle Shift
  • Regenerative Braking/Deceleration Control (Paddle)

Comfort and convenience

  • Accessory Socket Location - Front
  • Air Conditioning Dual Zone Auto
  • Air Conditioning - Rear Vent
  • Auto Dimming Rear View Mirror
  • Auto Wipers
  • Cargo Net Hook
  • Cruise Control - Adaptive
  • Door Mirrors - Electrically Adjustable
  • Door Mirrors - Heated
  • Door Mirrors - Electrically Folding
  • Door Mirrors - Exterior Mirror Tilt for Reverse
  • Driver and Front Passenger Seat Armrest
  • Electric Windows Front & Rear
  • Front Seat - Manual Height Adjustment
  • Front Seat Passenger and Driver - Pockets
  • Heated Front Windshield
  • Heated Seats - Front
  • Heated Steering Wheel
  • Key Fob with Mirror and Window Operation
  • Luggage Floor Box
  • Magic Seats
  • Parking Sensors (Front 4: Rear 4)
  • Rear Bench 60/40 Split
  • Rear Seat Centre Armrest
  • Rear View Camera
  • Sunvisor Vanity Mirrors
  • Tilt and Telescopic Steering Wheel

Interior Lights

  • Ambient Light (Roof)
  • Courtesy Light
  • Map Light (Front)
  • Meter Illumination
  • Rear Reading Light
  • Sunvisor Vanity Mirror Illumination
  • Boot Light

Audio and Communications

  • BluetoothTM Hands Free Telephone (HFT)
  • DAB
  • My Honda+ Compatible
  • Honda CONNECT with Navigation (9" touchscreen, AM/FM/DAB, Apple Carplay and Android Auto)
  • 4 Speakers & 4 Tweeters
  • Speakers - Front Tweeter
  • Steering Wheel Remote Audio Controls
  • USB Front x2
  • USB Rear x2
  • Wireless Apple Carplay
  • Wireless Charging

Exterior

  • Two-tone Roof
  • Shark Fin antenna
  • e:HEV Emblem
  • Exterior Door Handle Finish
  • Body Colour Grille
  • Two-tone Mirror Colour
  • Roof Rails
  • Spoiler
  • Orange Accents
  • High Gloss Window Garnish

Exterior Lights

  • LED Active Cornering Lights
  • Auto Headlights
  • Auto Headlight Adjuster
  • LED Daytime Running Light
  • LED Front Fog Lights
  • Headlight Auto On/Off Timer (Coming Home/Leaving Home Function)
  • LED Headlight
  • High Beam Support System (HSS)
  • Smoke & Clear Lens Rear Light
  • Front Turn LED with sequential

Wheels & Tyres

  • Tyre Repair kit
  • 18'' Black Cut Alloy Wheel
  • Tyres size Front/Rear - 225/50 R18

For details on tyres labelling please refer to the link [here].

What does this mean? More info [here].

+eCall functionality is subject to 2G/3G network availability.
