Specifications and Price
Change model
-

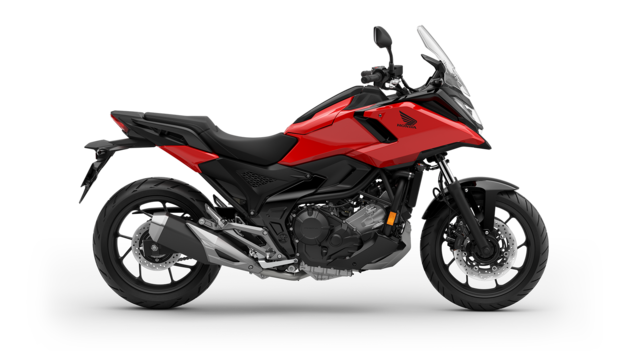

Fighting Red
-
Matte Pearl Glare White
-

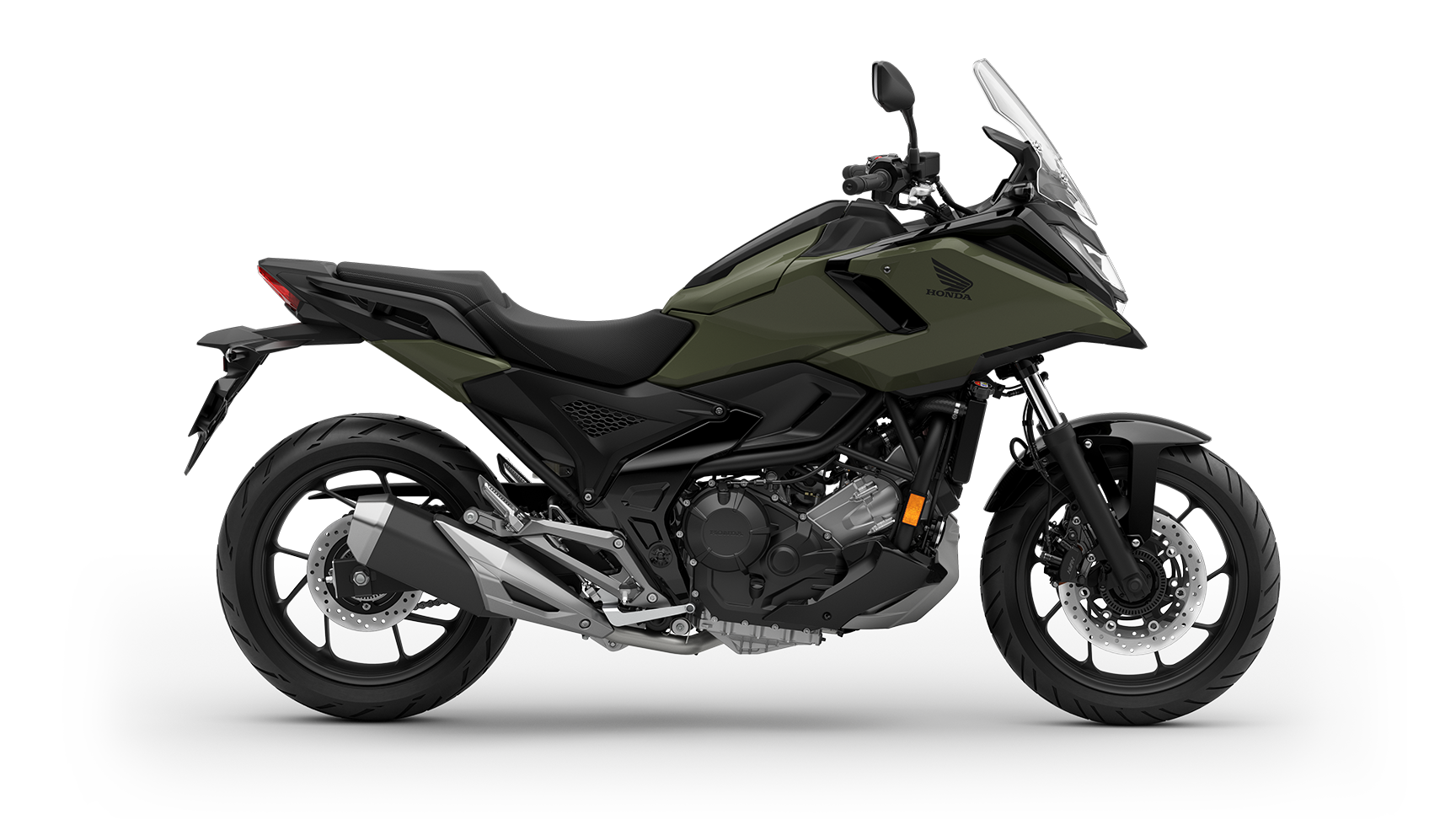

Earth Khaki
-

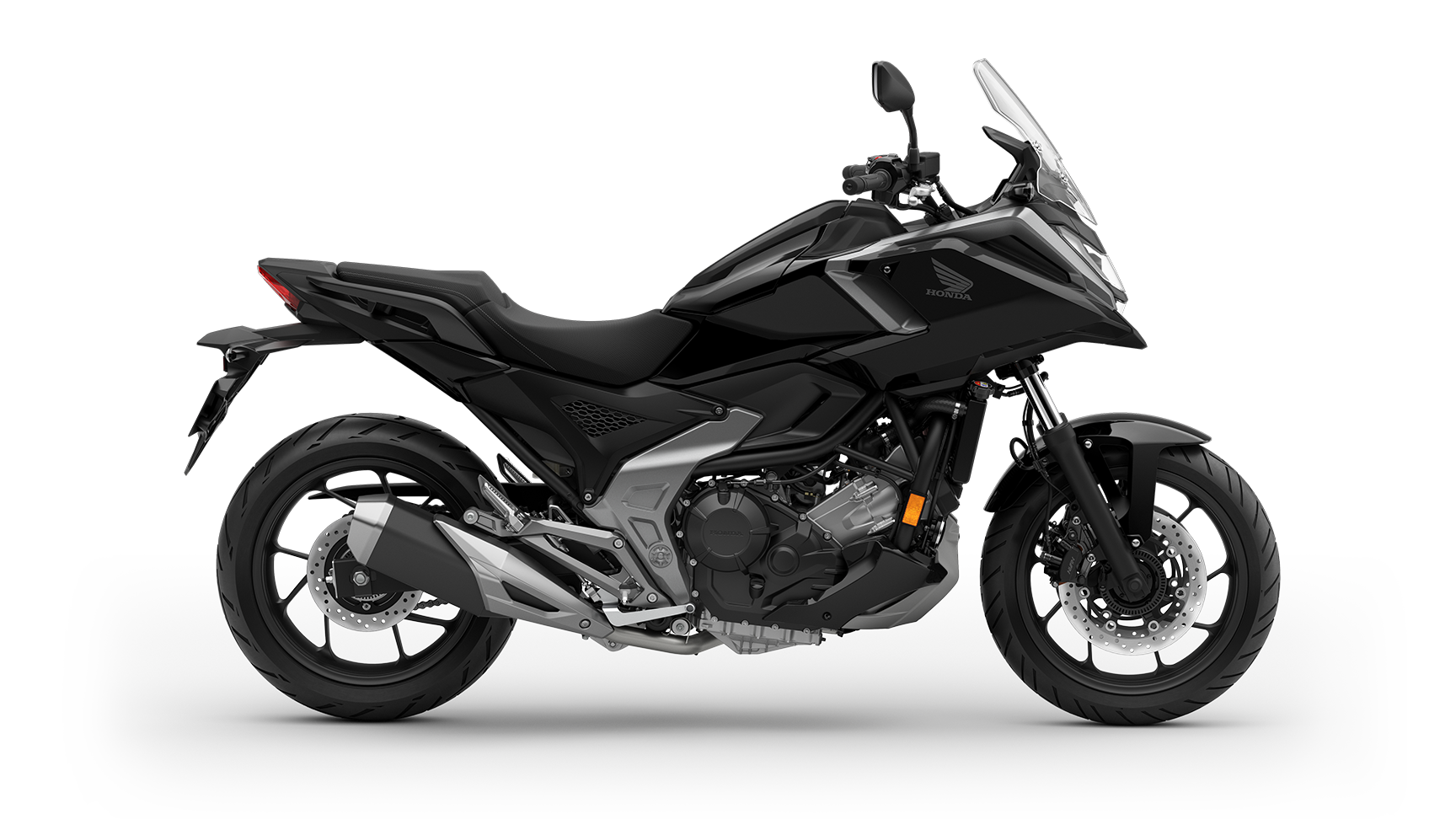

Earth Black
-
Fighting Red
-
Matte Pearl Glare White
-
Earth Khaki
-
Earth Black
-

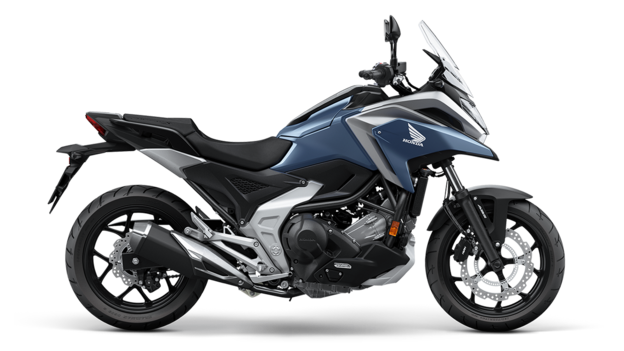

Matte Jeans Blue Metallic
-

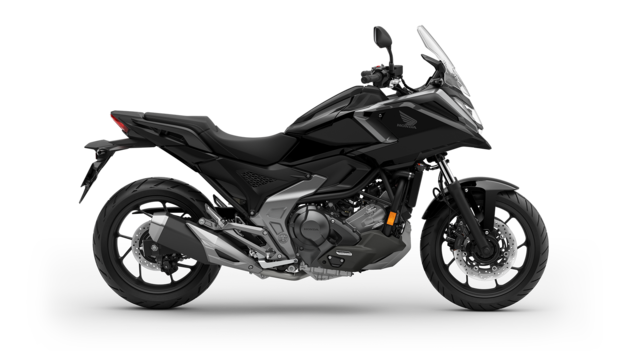

Matte Ballistic Black Metallic
-

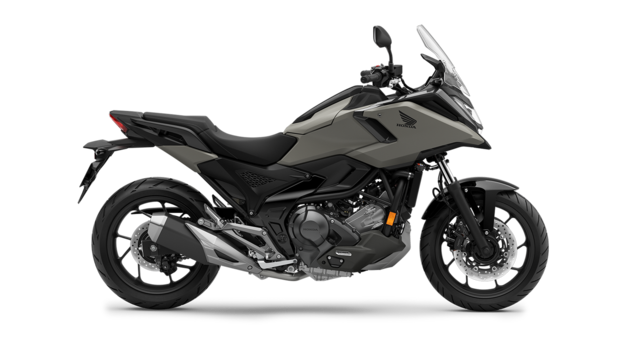

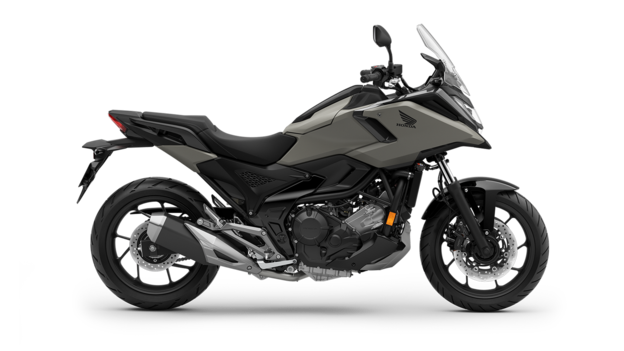

Pearl Deep Mud Grey
-
Candy Chromosphere Red
-
Matte Jeans Blue Metallic
-
Matte Ballistic Black Metallic
-
Pearl Deep Mud Grey
-
Candy Chromosphere Red
Technical Specifications
Engine
-
Bore × Stroke (mm)
77mm x 80mm
-
Carburation
PGM-FI electronic fuel injection
-
Compression Ratio
10.7 : 1
-
Engine Displacement (cc)
745cc
-
Engine Type
Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder
-
Max. Power Output
43.1kW/6,750rpm(35kW/6,000rpm)
-
Max. Torque
69Nm/4,750rpm(65/4,000rpm)
-
Starter
Electric
-
C02 Emissions (g/km)
82g/km
-
Oil Capacity (Litres)
4.0L
Wheels
-
Brakes Front
Axial mounted twin-piston brake caliper, 296 mm floating double disc
-
Brakes Rear
240mm single wavy hydraulic disc with single-piston caliper
-
Suspension Front
41mm telescopic fork, 120mm stroke
-
Suspension Rear
Monoshock damper, Pro-Link swingarm, 120mm travel
-
Tyre Size Front
120/70-ZR17M/C (58W)
-
Tyre Size Rear
160/60-ZR17M/C (69W)
-
Wheels Front
Multi-spoke cast aluminium
-
Wheels Rear
Multi-spoke cast aluminium
Dimensions and Weights
-
Battery Capacity (VAh)
12V/11AH/11.6 Ah
-
Caster Angle
27°
-
Dimensions (L×W×H) (mm)
2210mm x 846mm x 1330mm
-
Frame type
Diamond; steel pipe
-
Fuel Tank Capacity (Litres)
14.1 litres
-
Fuel Consumption
3.5L/100km
-
Ground Clearance (mm)
145 mm
-
Kerb Weight (kg)
226kg
-
Seat Height (mm)
802 mm
-
Trail (mm)
110 mm
-
Wheelbase (mm)
MT: 1525mm DCT: 1535mm
-
Turning Radius
3.0m
Transmission
-
Clutch
MT: Wet multiplate clutch DCT: Wet multiplate hydraulic 2-clutch
-
Final Drive
Chain
-
Gearbox
6-speed manual clutch transmission
-
Transmission Type
MT: 6-speed Manual Transmission DCT: 6-speed Dual Clutch Transmission
Instruments and Electrics
-
Headlights
LED
-
Ignition System
Computer controlled digital transistorised with electronic advance
-
Instruments
LCD Meter, with speedometer, bar-type tachometer Various functions can be selected and displayed Can be operated by the switch on handle.
-
Tail Light
LED
-
USB Socket
Optional (Type-C)
-
Self Cancelling Indicators
No
-
Security
HISS
Engine
-
Bore × Stroke (mm)
77mm x 80mm
-
Carburation
PGM-FI electronic fuel injection
-
Compression Ratio
10.7 : 1
-
Engine Displacement (cc)
745cc
-
Engine Type
Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder
-
Max. Power Output
43.1kW/6,750rpm(35kW/6,000rpm)
-
Max. Torque
69Nm/4,750rpm(65/4,000rpm)
-
Starter
Electric
-
C02 Emissions (g/km)
82g/km
-
Oil Capacity (Litres)
4.0L
Wheels
-
Brakes Front
Axial mounted twin-piston brake caliper, 296 mm floating double disc
-
Brakes Rear
240mm single wavy hydraulic disc with single-piston caliper
-
Suspension Front
41mm telescopic fork, 120mm stroke
-
Suspension Rear
Monoshock damper, Pro-Link swingarm, 120mm travel
-
Tyre Size Front
120/70-ZR17M/C (58W)
-
Tyre Size Rear
160/60-ZR17M/C (69W)
-
Wheels Front
17M/C X MT3.50 Multi-spoke cast aluminium
-
Wheels Rear
17 M/C X MT4.50 Multi-spoke cast aluminium
Dimensions and Weights
-
Battery Capacity (VAh)
12V/11Ah/ 11.6Ah
-
Caster Angle
27°
-
Dimensions (L×W×H) (mm)
2210mm x 846mm x 1330mm
-
Frame type
Diamond; steel pipe
-
Fuel Tank Capacity (Litres)
14.1 litres
-
Fuel Consumption
3.5L/100km
-
Ground Clearance (mm)
145 mm
-
Kerb Weight (kg)
MT: 214kg DCT: 224kg
-
Seat Height (mm)
802 mm
-
Trail (mm)
110 mm
-
Wheelbase (mm)
MT: 1525mm DCT: 1535mm
-
Turning Radius
3.0m
Transmission
-
Clutch
MT: Wet multiplate clutch DCT: Wet multiplate hydraulic 2-clutch
-
Final Drive
Chain
-
Gearbox
6-speed manual clutch transmission
-
Transmission Type
MT: 6-speed Manual Transmission DCT: 6-speed Dual Clutch Transmission
Instruments and Electrics
-
Headlights
LED
-
Ignition System
Computer controlled digital transistorised with electronic advance
-
Instruments
LCD Meter, with speedometer, bar-type tachometer Various functions can be selected and displayed Can be operated by the switch on handle.
-
Tail Light
LED
-
USB Socket
Optional (Type C )
-
Security
HISS
Engine
-
Bore × Stroke (mm)
77mm x 80mm
-
Carburation
PGM-FI electronic fuel injection
-
Compression Ratio
10.7 : 1
-
Engine Displacement (cc)
745cc
-
Engine Type
Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder
-
Max. Power Output
43.1kW/6,750rpm(35kW/6,000rpm)
-
Max. Torque
69Nm/4,750rpm(65/4,000rpm)
-
Starter
Electric
-
C02 Emissions (g/km)
82g/km
-
Oil Capacity (Litres)
4.0L
Wheels
-
Brakes Front
320mm single wavy hydraulic disc with 2-piston caliper
-
Brakes Rear
240mm single wavy hydraulic disc with single-piston caliper
-
Suspension Front
41mm telescopic fork, 120mm stroke
-
Suspension Rear
Monoshock damper, Pro-Link swingarm, 120mm travel
-
Tyre Size Front
120/70-ZR17M/C (58W)
-
Tyre Size Rear
160/60-ZR17M/C (69W)
-
Wheels Front
Multi-spoke cast aluminium
-
Wheels Rear
Multi-spoke cast aluminium
Dimensions and Weights
-
Battery Capacity (VAh)
12V/11AH
-
Caster Angle
27°
-
Dimensions (L×W×H) (mm)
2210mm x 846mm x 1330mm
-
Frame type
Diamond; steel pipe
-
Fuel Tank Capacity (Litres)
14.1 litres
-
Fuel Consumption
3.5L/100km
-
Ground Clearance (mm)
145 mm
-
Kerb Weight (kg)
MT: 214kg DCT: 224kg
-
Seat Height (mm)
800 mm
-
Trail (mm)
110 mm
-
Wheelbase (mm)
MT: 1525mm DCT: 1535mm
-
Turning Radius
3.0m
Transmission
-
Clutch
MT: Wet multiplate clutch DCT: Wet multiplate hydraulic 2-clutch
-
Final Drive
Chain
-
Gearbox
6-speed manual clutch transmission
-
Transmission Type
MT: 6-speed Manual Transmission DCT: 6-speed Dual Clutch Transmission
Instruments and Electrics
-
Headlights
LED
-
Ignition System
Computer controlled digital transistorised with electronic advance
-
Instruments
LCD Meter, with speedometer, bar-type tachometer Various functions can be selected and displayed Can be operated by the switch on handle.
-
Tail Light
LED
-
Security
HISS
Engine
-
Bore × Stroke (mm)
77mm x 80mm
-
Carburation
PGM-FI electronic fuel injection
-
Compression Ratio
10.7 : 1
-
Engine Displacement (cc)
745cc
-
Engine Type
Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder
-
Max. Power Output
43.1kW/6,750rpm(35kW/6,000rpm)
-
Max. Torque
69Nm/4,750rpm(65/4,000rpm)
-
Starter
Electric
-
C02 Emissions (g/km)
82g/km
-
Oil Capacity (Litres)
4.0L
Wheels
-
Brakes Front
320mm single wavy hydraulic disc with 2-piston caliper
-
Brakes Rear
240mm single wavy hydraulic disc with single-piston caliper
-
Suspension Front
41mm telescopic fork, 120mm stroke
-
Suspension Rear
Monoshock damper, Pro-Link swingarm, 120mm travel
-
Tyre Size Front
120/70-ZR17M/C (58W)
-
Tyre Size Rear
160/60-ZR17M/C (69W)
-
Wheels Front
Multi-spoke cast aluminium
-
Wheels Rear
Multi-spoke cast aluminium
Dimensions and Weights
-
Battery Capacity (VAh)
12V/11AH
-
Caster Angle
27°
-
Dimensions (L×W×H) (mm)
2210mm x 846mm x 1330mm
-
Frame type
Diamond; steel pipe
-
Fuel Tank Capacity (Litres)
14.1 litres
-
Fuel Consumption
3.5L/100km
-
Ground Clearance (mm)
145 mm
-
Kerb Weight (kg)
MT: 214kg DCT: 224kg
-
Seat Height (mm)
800 mm
-
Trail (mm)
110 mm
-
Wheelbase (mm)
MT: 1525mm DCT: 1535mm
-
Turning Radius
3.0m
Transmission
-
Clutch
MT: Wet multiplate clutch DCT: Wet multiplate hydraulic 2-clutch
-
Final Drive
Chain
-
Gearbox
6-speed manual clutch transmission
-
Transmission Type
MT: 6-speed Manual Transmission DCT: 6-speed Dual Clutch Transmission
Instruments and Electrics
-
Headlights
LED
-
Ignition System
Computer controlled digital transistorised with electronic advance
-
Instruments
LCD Meter, with speedometer, bar-type tachometer Various functions can be selected and displayed Can be operated by the switch on handle.
-
Tail Light
LED
-
Security
HISS
